1) Remove all the contents from inside of the vacuum cleaner container.
2) Attach the carry handle into the slots located on the top of the power head. Secure them with supplied screws.
3) Turn the container upside down and insert the feet with casters into the slots and apply pressure until they click into place. Secure them with supplied screws.
4) Your vacuum cleaner comes ready for both wet and dry vacuum cleaning with the washable cartridge filter and pre-filter pre-installed.
5) Secure the power head back on the container, using the latches. Insert the locking the end of the hose into the suction port of the container and lock into place.
6) Choose the desired accessories and/or extension wands and push fit onto the hose nozzle.
7) Attach the detachable power cable to the connection lead using the cable restraint hook as illustrated.

Floor Nozzle Attachments

1) To remove the floor nozzle attachment, release the push clips on either side of the floor head holder. The attachment should drop out from underneath. Only one floor nozzle should be attached at any given time.
2) To insert a new floor nozzle attachment, place one side of the attachment into the bottom of the floor head holder and secure one clip in place. Push the other side up into place and ensure it is securely fitted into the holder.

1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry brush to clean the equipment regularly.
2) Clear all dirt or debris from the collection tank after each use. Allow to dry before replacing the power head. Do not use cleaning agents or solvents; these may damage the appliance.
3) Check the hose, attachments, and power cord to verify that they have not been damaged or any debris is trapped and blocking airflow.

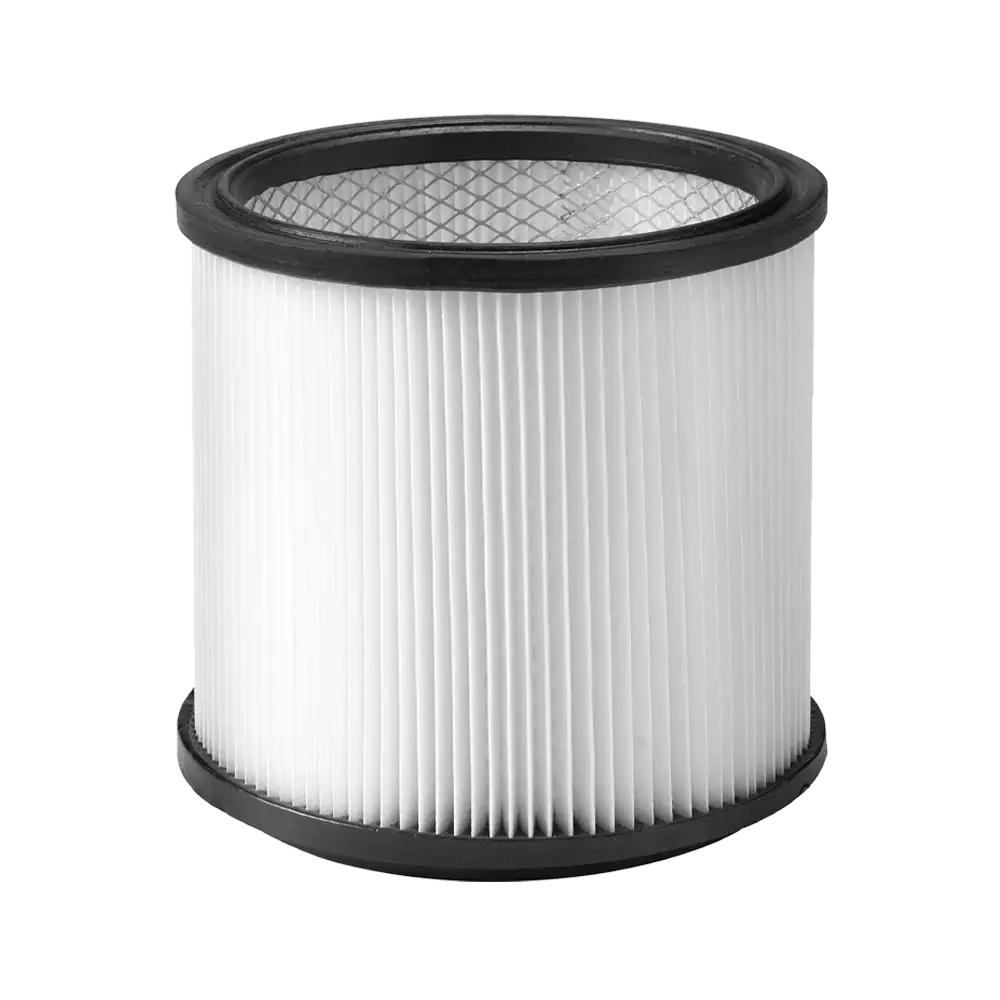

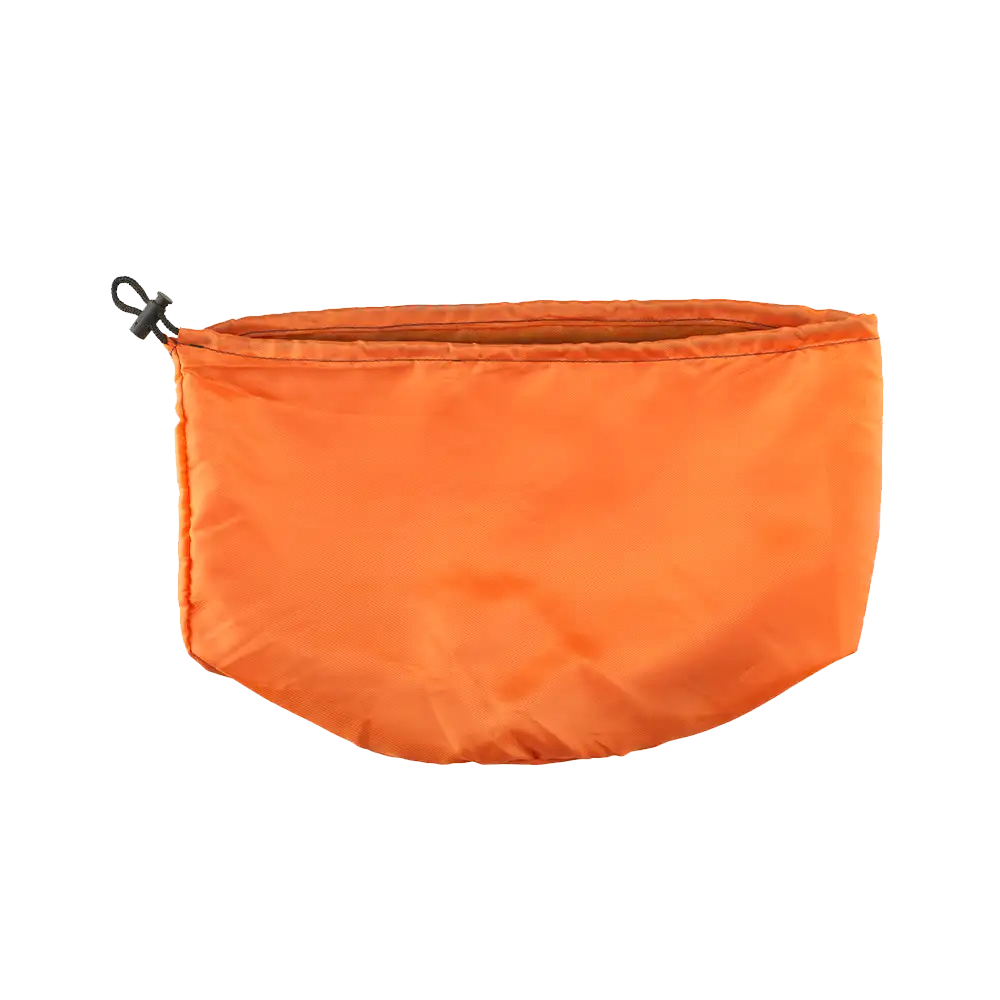

Cleaning the Washable Cartridge Filter & Nylon Pre-filter

1) Remove the filter and clean by gently tapping or brushing dirt off. For optimal performance it is recommended to replace the old filter with a new filter regularly.
2) Use a mild soap and water solution to wash cartridge filter and nylon pre-filter and rinse with clean water. Allow the filters to air dry before re-installing.
