1) Charge the battery pack for at least 4 hours before using for the first time. Never charge the batteries in temperatures above 40°C or below 4°C. It is normal for the charging adapter to become warm when charging.
2) Attach the battery pack to the vacuum cleaner.
3) Insert the handheld vacuum into the top of the suction wand and lock into place until you hear a click.
4) Insert the wand into the neck of the motorised floor head ensuring that there is nothing trapped between the unit connections. Make sure the wand is locked into place until you hear a click.

Emptying the Dust Bin

NOTE: For best performance, empty dust bin after every use or once dust reaches MAX fill line. Before emptying the dust bin, ensure the vacuum cleaner is turned off.

1) Position dust bin area of vacuum over a waste receptacle. Press down on the dust bin door release button to open dust bin lid and allow bin contents to drop into waste receptacle.
2) Close the dust bin door until you hear a click.

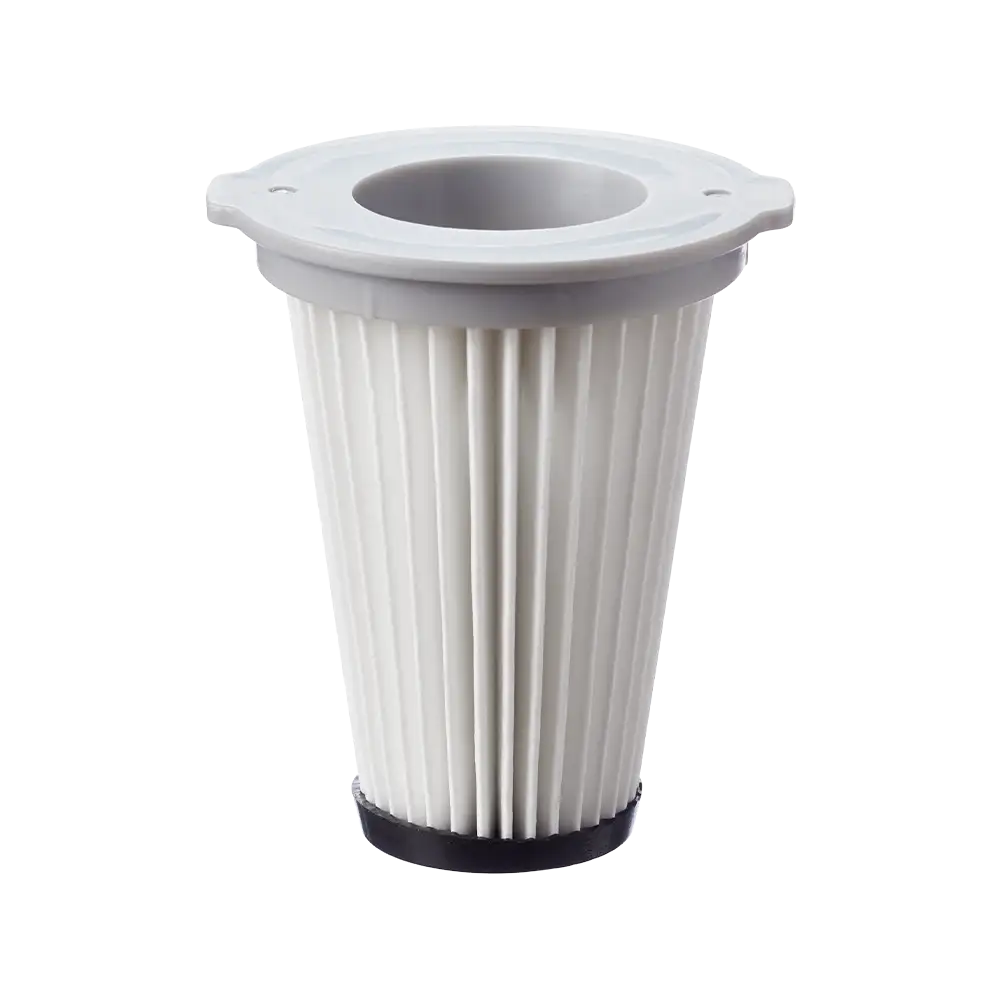

Cleaning the Filters

NOTE: The key to maximum performance is having a clean filter. Cleaning the filter frequently will help your vacuum cleaner operate at peak efficiency. A spare filter is provided with your vacuum cleaner to allow you to dry one filter properly while using the other. Additional filters can be purchased from www.cleva-europe.com.

1) With one hand grasped around the handle, press the motor head release button to separate the dust bin from the handheld vacuum.

NOTE: Grasp the dust bin when pressing the release button.

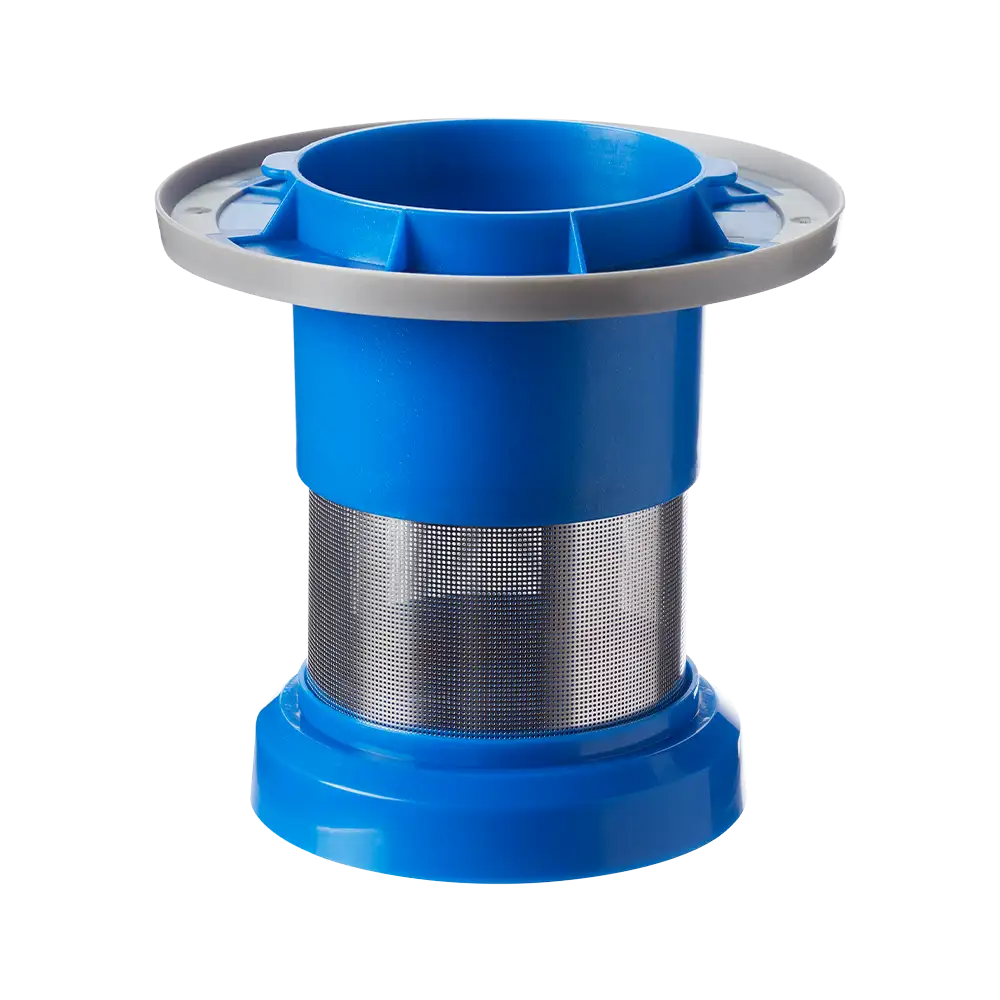

2) Remove the filter and filter cage from the dust bin.
3) Use a soft brush to clean loose debris from the filter and then rinse with warm water. Rinse and gently squeeze dry the filters. Set all filters aside and allow to air dry for 24 hours.

IMPORTANT: The filters and the filter cage must be completely dry before reuse.

4) Place the filter cage back into the dust bin, then place the filter back in.
5) To reassemble the dust bin to the handheld vacuum, align the tabs on the dust bin with slots in the handheld vacuum. Once aligned, attach the dust bin to the handheld vacuum until you hear a click.

Cleaning the Motorised Floor Head & Blockage

Remove the Brush Roll

1) Make sure the vacuum cleaner is turned OFF, then remove the wand and set aside.
2) Turn the floor head over to access the brush roll. Press and push the tab on the left hand side of the head to the left and hold it. This will unlock the brush roll.
3) With the tab pushed to the left, simply lift the brush roll out of the head housing. Clean off debris and anything wrapped around the brush roll. Use a pair of scissors to remove threads, etc.
4) Place the brush roll back into the housing by aligning the hexagonal end of the brush roll into the right end of the head. Then push the unlock tab to the left and hold it. Align the square end of the brush roll with the left end of the head and insert it into place. Release the tab to lock the brush roll.

Remove the Wand Blockage

1) To clean out the wand, press the wand release button, and pull the wand away from motorized floor head.
2) Carefully remove any debris or blockage from the inside of the motorised floor head.
3) Reattach the motorised floor head onto the vacuum body.
4) Once the blockage is removed, start the vacuum to ensure air flow through the hose.
