LawnMaster Impact Garden Shredder 2400W

Guides, Manuals, Parts & Support

FD2402-01

Learn how to set up and use your garden shredder with instruction manuals, user guides and FAQs.

Download Instruction Manual

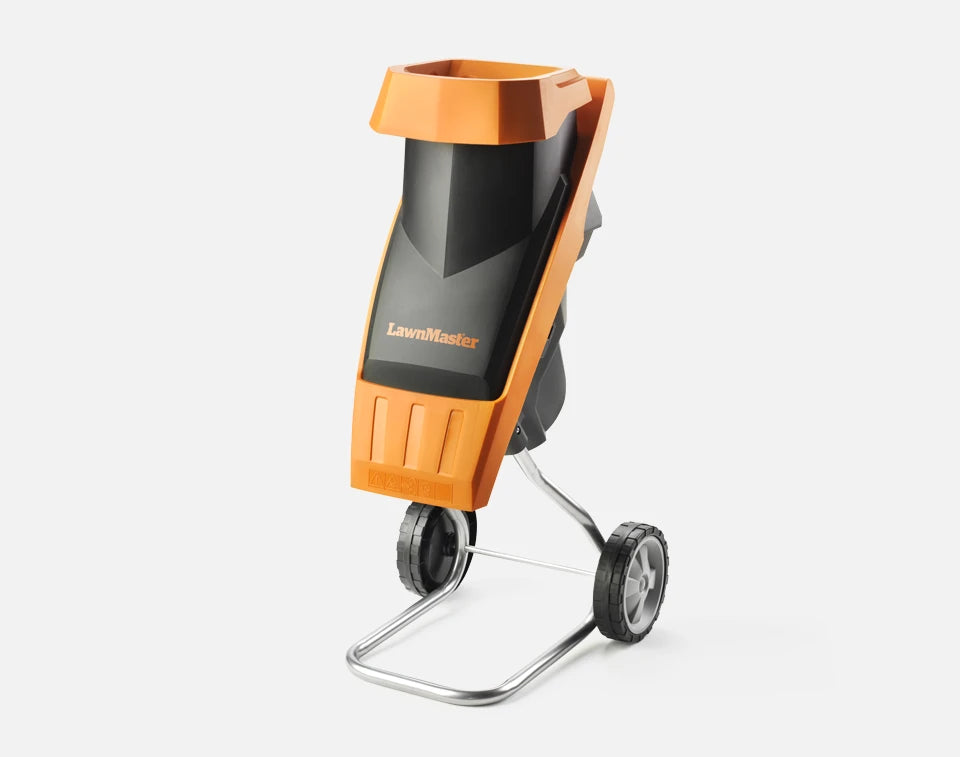

LawnMaster Impact Garden shredder FD2402-01 Spare Parts
  • 01 Setting Up

    Assembling the Wheels

    1. Slide the axle into the chassis.

    2. Slide the two wheels onto the chassis axle.

    3. Slip the washers onto the axle and push the split pins through the appropriate holes in the axle.

    4. Clip the wheel covers onto the wheels.

    Assembling the Chassis to Shredder Unit

    1. Rest the shredder unit on the hopper (upside down).

    2. Push the wheel chassis into the 2 holes in the plastic housing of shredder.

    3. Secure with the 2 screws provided.

    Attaching the Collection Bag

    1. Stand the shredder upright and hook the collection bag into the bag mounts.

  • 02 Maintenance

    Reversing, Sharpening & Replacing the Blade

    1. Remove the front part of the shredder housing. Check that the power plug is removed from the power supply.

    2. Unscrew the housing interlock anticlockwise.

    3. Tip forward the front part of the shredder housing. Remove it completely and put it aside.

    You now have full access to the blades.

    4. Use a screwdriver to block the blade plate. First, slot the screwdriver into the access hole. Then carefully turn the blade plate until one of the two blocking apertures appears and aligns with the access hole. Block the blade plate by slotting the screwdriver right
    through it.

    5. Take out the Allen key from the recess in the housing inside the shredder. Use the Allen key to loosen the Allen bolt anticlockwise in the center of the blade plate. Remove the Allen bolt and the washer.

    6. Remove the blade from its seat.

    7. The blade can be reversed, otherwise sharpen or replace any blunt or damaged blade as
    necessary.

    8. Refit the blade onto the blade plate ensuring it is seated in its correct position.

    9. Refit the washer and Allen bolt and tighten securely clockwise.

    10. Re-install the front part of the shredder housing onto the main housing securely. Ensure the housing interlock is tightened.

  • 03 Technical Specifications

    Model Number

    FD2402-01

    Power Supply

    220-240V Electric

    Motor Power

    2400W

    Motor Type

    Brushed

    Cord Length

    3m

    Cutting Width

    40mm Max Diameter

    Weight

    12kg

    Feed Type

    Semi-automatic

    Cutting Method

    Double-sided Blade

    Capacity

    50L

    Throughput per Hour

    100L

    Plug Type

    British Standard Plug

    MX 24V Shared Battery System

    No

    Guarantee

    2-Year
  • 04 Accessories

    Genuine LawnMaster accessories and spare parts for your machine.

  • 05 Spare Parts

    We stock a wide range of spare parts if you'd like to repair your machine, rather than replace it. If you can't find the part you are looking for in the accessories section above, please get in touch with us. For safety, certain parts may not be available individually, but as part of a combined unit.

FAQ

Frequently Asked Questions

  • 01 How do I unblock the garden shredder?

    Before starting to service or cleaning, turn off the shredder, disconnect the power plug, and wait until the blade comes to a standstill.

    1. Check that the power plug is removed from the power supply.

    2. Unscrew the housing interlock anticlockwise.

    3. Tip forward the front part of the shredder housing. Remove it completely and put it aside.

    You now have full access to the blades.

    4. Remove any blockages.

    5.■ Re-install the front part of the shredder housing onto the main housing securely. The bottom of
    the front part of the shredder housing should be hooked into the main housing for a correct fit
    (Fig. 8). Tighten the shredder housing by tightening the housing interlock clockwise. The
    shredder may not start if the housing has not been correctly fitted.

  • 02 Why won't my garden shredder start?

    1. The overload protection has tripped. Wait until the motor has cooled down. Press the reset button, and then restart the shredder.

    2. The lid of shredder housing is not secured properly. Tighten the housing interlock to correctly secure the shredder housing.

  • 03 The shredder has stopped drawing the twigs and branches in, why?

    1. Shredding material is too soft.
    Use the plunger or add dry twigs/
    branches.

    2. Shredder is blocked. Refer to Clearing a Blockage section above.

    3. Shredding material is in discharge duct. Remove shredding material from
    discharge duct.

  • 04 Why has my garden shredder stopped shredding properly?

    Check to see if the blades are blunt and replace. Refer to the maintenance section above to see how.
